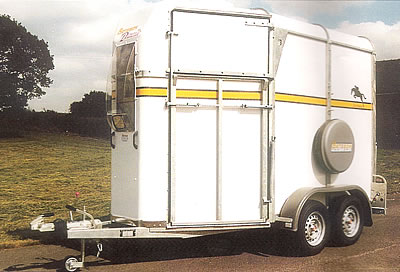

Bateson Deauville
The Deauville is Bateson's most popular front unload horse trailer with a generous 7'3" headroom allowing horses up to 17 hands to be transported. The centrally hinged division is very easy to operate and allows plenty of space for entry and exit. The Deauville has a double internal saddle rack and cover that can remain in place during unloading. The larger front window incorporating a coupling mirror, combined with the white interior gives a very light and airy environment and allows a view of the horse during transit.
The standard rear ramp has a steel top door that lifts on gas struts; alternatively the trailer is available with the 'Boston' option of American doors with two hinged ventilator flaps and short pull out ramp.
Specifications - Bateson Deauville |
| Dimension |
inches |
metres |
| Overall Width |
7' 2" |
2.18 |
| Overall Height |
8' 9" |
2.67 |
| Overall Length |
14' 6" |
4.43 |
| Internal Length |
10' 6" |
3.19 |
| Internal Height |
7' 3" |
2.22 |
| Internal Width |
5' 5" |
1.65 |
| Stall Width |
2' 7" |
0.79 |
| Stall Length |
6' |
1.82 |
| Weight |
kg |
| Maximum Gross Weight |
2300 |
| Unladen Weight * |
860 |
Dimensions and weights are approximate and given as a guide only.
|
