MULTI-TREKA

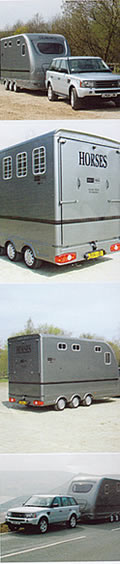

A superb tri-axle trailer designed to carry up to three horse/pones depending on the size and weight of the animals.

The seven foot wide boy enables horses to turn easily and has three fully adjustable partitions, arranged diagonally for comfortable travel. A low wide ramp together with the light spacious interior encourages even the most reluctant traveller. The living area is fitted to a high standard providing luxury overnight accommodation for two people.

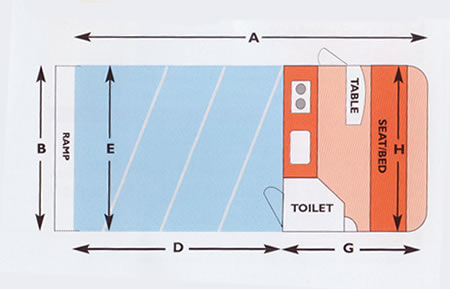

Layout :

EXTERNAL DIMENSIONS Body Area inches mm A LENGTH 16 ' 6" 5067 B WIDTH 7' 1 " 2160 C HEIGHT 9' 6" 2934 INTERNAL DIMENSIONS Horse Area inches mm D LENGTH 9' 6" 2934 E WIDTH 7' 0 " 2135 F HEIGHT 7' 6 " 2135 Living Area G LENGTH 7' 2135 B WIDTH 7' 2135 I HEIGHT 7' 2135 WEIGHT text Kilos UNLADEN WEIGHT From 1985 GROSS (max) 3500



Prices for Multi Treka
	£ BasicPrice Ex- Works	£ VAT	£ Total Price
Multi Treka	see price list
Optional Extras
Skylight Roof Vent			64.56
Electric Roof Extractor Fan			146.88
Storage Rack (each)			52.88
Full Depth Partition (each)			129.25
Fridge			411.25
Porta Poti			46.94
Electric Flushing Toilet			528.75
TV and DVD player			528.16
Warm Air Heating			558.12
Hot Water			381.88
Leather Upholstery			229.13
Camera Hand Held Monitor			199.75
Camera with 7" Monitor			223.25
Tracker			351.33
Wheel Clamp			97.47
Fire Extinguisher			23.44
Fire Blanket			13.95
First Aid Kit			18.98

Standard Model Features
Chassis	Strong galvanised steel chassis for long maintenance-free life.
Axles	Tri Axle
Suspension	Independent suspensions for a comfortable ride
Wheels	Six fully braked wheels with low profile tyres and spare included
Ball Hitch	Built-in lock including auto reverse.
Floor	Aluminium plank covered with heavy duty rubber.
Body	GRP body for long maintenance-free life, lined with kicking boards in the horse area
Large Front Locker	For gas bottles and extra locker storage
Power	Internal electric power is supplied by a rechargeable high capacity leisure battery, providing independent power when not attached to the towing vehicle.
Colours	Standard two tone colours grey and white. Any colour available at extra cost.
Graphics	Graphics of your choice. Quotation on request.
Horse Area
Partition	Three Fully adjustable padded partition with integrated head divider and rubber skirt to floor.
Ventilation	Five opening windows.and skylight roof vent
Lighting	Two interior lights
Tie Rings	Three horse tie rings and three hay net tie rings. Two external tie rings.
Storage	Two saddle and two bridle racks
Ramp Doors	White easy clean safety loading doors.

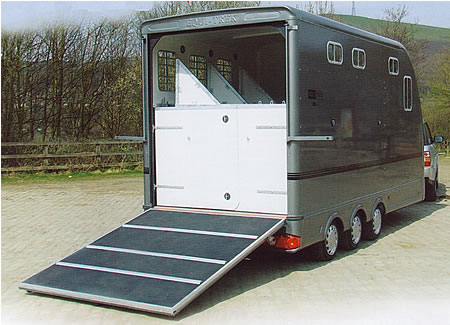

Ramp	Large low sprung ramp with heavy duty rubber matting and alloy tread rails.
Owners Area
Ventilation	Three opening windows and roof vent
Table	Large table which folds away neatly.
Cooking	ITwo hob gas cooker
Seating/Sleaping	Comfortable seating for four people with storage beneath that converts into two bunks as standard but an alternative double bed is available as a no cost option.
Storage	Ample storage in kitchen unit, wall cupbards, corner unit for boots and hat, suit bag and coat hanger
Lighting	Large central light and additional spotlights
Toilet Compartment	Separate compartment with coat hooks, opening window and cupboard locker and light.
Sink	Sink with electric water supply from 70 lite water tank with external lockable filler cap.
Mirror	Mirror
