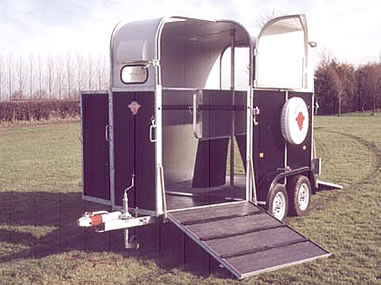

The Rosette is a very attractive, lightweight trailer that uses modern materials to combine a stylish design with a durable finish. The Rosette is designed to appeal to owners who want to tow a lightweight trailer with the family car.
It boasts a fully galvanised chassis and frame, a GRP nose cone, plastisol roof sheet and strong, pre-coloured resin coated side panels. The floor and ramps are overlaid with rubber to maximise safety and durability, making the Rosette an appealing, low maintenance trailer.
As with all trailers in the Supreme range, a spare wheel and cover, mounted on the side of the trailer, are standard on the Rosette
| Construction Specifications |
- Full height front and rear unload
- Fully welded, hot dipped galvanized chassis and framework
- Resin coated pre coloured body panels
- Plastic coated roof sheets
- GRP nose cone and dome door
- Heavy duty thermoplastic mudguards
- Independent suspension complete with full width galvanized beam axles
- Braking system with auto reverse coupling
- Compliant low maintenance 12 volt lighting system
- Tanalised tongue and groove timber floor
|
| General Specifications |
- Front air vent
- Window, and roof-light in nose cone
- Interior light
- Rubber floor and ramp mats
- Removable swivel partition
- Adjustable padded breast and breech bars
- Quick release breast bar brackets
- Internal tie rings
- Partition and side padding
- Canopy/curtain above rear ramp
- Rubber floor mats (removable)
- Jockey wheel
- Spare wheel and cover with logo - mounted on side
|
| Security |
|
| Optional Extras |
See Prices / Optional Extras for details. |
|
|
Specifications - Supreme Rosette |
| Dimension |
inches |
metres |
| Overall Width |
6' 9" |
2.06 |
| Overall Height |
8' 6" |
2.57 |
| Overall Length |
13' 7" |
4.15 |
| Internal Length |
10' 1 1/2" |
3.09 |
| Internal Height |
7' |
2.13 |
| Internal Width |
5' 1" |
1.56 |
| Stall Length (max) |
5' 10" |
1.78 |
| Weight |
kg |
| Maximum Gross Weight |
1750 |
| Unladen Weight |
820 |
| Tyres - Size |
Pressue |
| 165/R/13/8ply |
65 PSI |
Dimensions and weights are approximate and given as a guide only.
|
