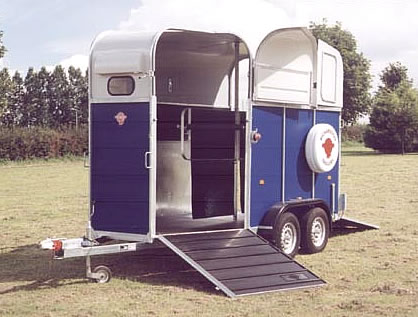

The generous proportions of the Ultra make the transport of
two large horses easy and enjoyable for you and your horses.
Its spacious interior makes loading and
unloading easy, and its internal dimensions provide comfort
for your horses on journeys of all lengths. They will arrive
at their destination looking and feeling their best.
Ramp lifters are fitted as standard, and
the external and internal lighting maximises visibility and
safety inside and out.
As with all trailers in the Supreme range,
a spare wheel and cover, mounted on the side of the trailer,
are standard. Also, the groom's door on the Ultra is lockable.
| Construction
Specifications |
- Full height front and rear unload
- Fully welded, hot dipped galvanized
chassis and framework
- Resin coated pre coloured body
panels
- Plastic coated roof sheets
- GRP nose cone and dome door
- Heavy duty thermoplastic mudguards
- Doors above rear ramp (travel
open or closed)
- Independent suspension complete
with full width galvanized beam axles
- Braking system with auto reverse
coupling
- Compliant low maintenance 12
volt lighting system
- One piece plastic floor guaranteed
against rot and corrosion for life of trailer
|
| General
Specifications |
- Front air vent
- Window, and roof-light in nose cone
- Interior light
- Rubber floor and ramp mats
- Removable swivel partition
- Adjustable padded breast bar brackets
- Quick release breast bar brackets
- Internal tie rings
- Partitition and side padding
- Jockey Wheel
- Spare wheel and cover with logo - mounted on side
|
| Security |
- Lockable grooms door handles
- Locking coupling head
|
| Optional
Extras |
|
See Prices / Optional Extras for
details.
|
| |
| |
Specifications - Supreme Ultra |
| Dimension |
inches |
metres |
| Overall Width |
7' 6 " |
2.30 |
| Overall Height |
9' 1 " |
2.75 |
| Overall Length |
16' 5 " |
5.00 |
| Internal Length |
11' 7 |
3.54 |
| Internal Height |
7' 8" |
2.33 |
| Internal Width |
5' 11 " |
1.80 |
| Stall Length (max) |
7' 4 " |
2.23 |
| Weight |
kg |
| Maximum Gross Weight |
3200 |
| Unladen Weight |
1100 |
| Tyres - Size |
|
| 165/R/13/8ply |
|
Dimensions and weights are approximate and given as a guide only.
|
